Rich Reach RQ25 mini excavator (2,650kg,14.6kW Yanmar) has 0.08m³ bucket, load-sensing hydraulics, swing boom, short tail&TOPS/FOPS cab. For tight spaces.

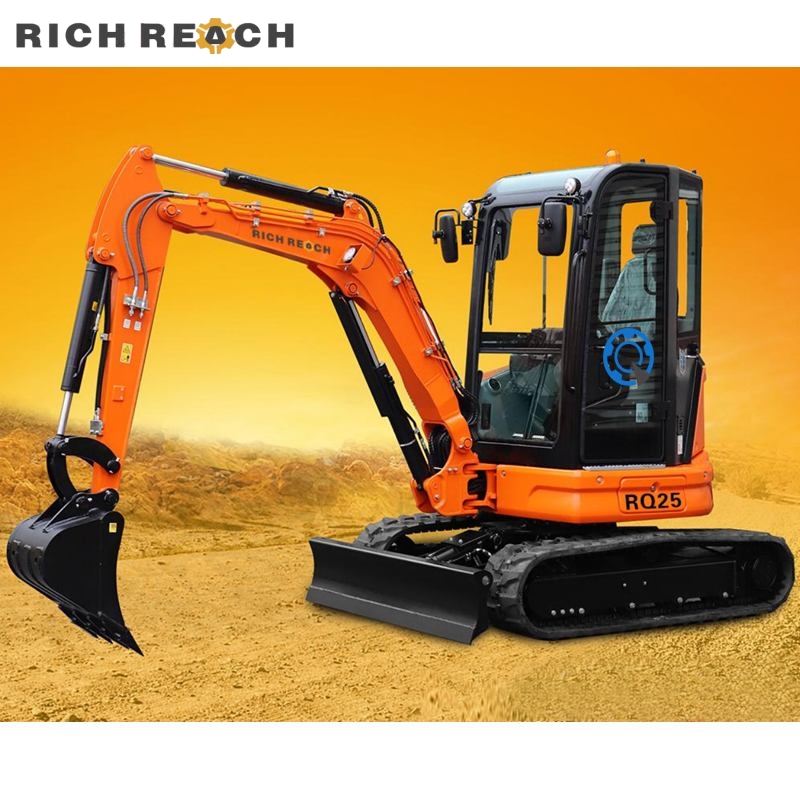

The Rich Reach RQ25 is a 2.65-ton mini crawler excavator engineered for maximum productivity in space-restricted environments. Powered by the reliable Yanmar 3TNV80F engine (14.6kW / 2400rpm), this machine combines exceptional fuel efficiency with Tier 4 Final / Stage V compliance. With a 0.08m³ standard bucket, short tail radius (765mm), and unique swing boom design, the RQ25 tackles wall-side digging, basement work, and landscaping projects with ease. Its load-sensing hydraulic system delivers precise power distribution, while the TOPS/FOPS certified cab ensures operator safety. Whether you need a compact digger for urban construction or a versatile machine for multi-attachment tasks, the RQ25 offers a perfect balance of agility and performance.
| Operating weight | 2,650 kg | Bucket capacity | 0.08 m³ |
| Engine model | Yanmar 3TNV80F | Engine power | 14.6 kW / 2400 rpm |
| Fuel tank | 26 L | Hydraulic tank | 24 L |
| Main pump flow | 67.2 L/min | Working pressure | 24.5 Mpa |
| Max. digging radius | 4,767 mm | Max. digging depth | 2,800 mm |
| Max. unloading height | 2,841 mm | Max. digging height | 4,170.5 mm |
| Bucket digging force | 23.1 kN | Arm digging force | 13.6 kN |
| Travel speed (low/high) | 2.2 / 3.0 km/h | Swing speed | 10 r/min |
| Tail swing radius | 765 mm | Overall dimensions (L×W×H) | 4,174 × 1,500 × 2,453 mm |
| Track gauge | 1,200 mm | Track length (axle) | 1,560 mm |
The RQ25 is equipped with a Yanmar 3TNV80F diesel engine that meets China National IV, Euro V, and US EPA Tier 4 Final emission standards. Rated at 14.6kW, it provides robust power while minimizing fuel consumption and noise. This makes the excavator suitable for both indoor demolition and outdoor construction projects with strict emission regulations.
Featuring a load-sensing hydraulic system from a renowned brand, the RQ25 ensures precise flow distribution and perfect power matching. The main pump delivers up to 67.2 L/min at 24.5 MPa, offering smooth and responsive control. Operators can enjoy faster cycle times and reduced fuel waste during heavy digging or fine grading operations.
The compact short tail design (765mm) allows the RQ25 to rotate freely within narrow job sites without risk of rear collision. The reinforced steel cabin meets TOPS (Tip-over Protection Structure) and FOPS (Falling Object Protection Structure) safety standards, ensuring maximum protection for the operator in tough environments.
The boom and arm are fabricated from high-strength alloy structural steel with a reinforced box-section design, offering superior resistance to bending and torsion. Standard multi-function attachment piping enables quick switching between buckets, hydraulic breakers, augers, and other tools – a true “one machine, multiple uses” capability.
The hydraulically adjustable swing boom can be offset left or right, allowing the RQ25 to dig directly alongside walls, foundations, corners, or inside basements without repositioning the machine. This dramatically improves efficiency in urban utility work and trenching against obstacles.
Rich Reach Machinery is committed to providing complete customer satisfaction and reliable after-sales support. When you choose the RQ25, you benefit from:
All Rich Reach products are manufactured under strict quality control procedures (ISO 9001:2015 certified). We stand behind every RQ25 excavator delivered worldwide.
The RQ25 is available for single-unit orders. We welcome both retail buyers and bulk distributors. Demo machines are also available for pre-purchase testing at our Hefei facility.
Yes. The Yanmar 3TNV80F engine is certified to Euro Stage V, as well as China IV and EPA Tier 4. Documentation and emission certificates can be provided for customs clearance in EU countries.
Standard attachments include a 0.08m³ digging bucket, hydraulic breaker, auger, and grading blade. Thanks to the auxiliary hydraulic piping, you can easily connect hydraulic thumbs, compactors, or tilt rotators. Please consult our sales team for attachment sizing.
Typical lead time is 15–25 working days after receiving the deposit. Shipping from Shanghai or Ningbo port takes approximately 30–45 days to most global destinations, depending on the shipping line and customs clearance.
Absolutely. We keep a comprehensive inventory of RQ25 parts (filters, track chains, hydraulic hoses, cylinders, pins, bushings) and can ship via DHL/FedEx for urgent needs. For regular orders, sea freight is more cost-effective.
The RQ25 features an ergonomic cabin with adjustable suspension seat, optional air conditioning, low noise levels, and large glass areas for excellent visibility. TOPS/FOPS protection gives operators peace of mind on rough sites.
Yes! We warmly welcome you to visit our manufacturing and assembly facility in Hefei, Anhui Province. We offer live demonstrations, test drives, and technical discussions. Please contact our sales team to arrange your visit.
We extend a warm welcome to all customers, dealers, and partners to visit Rich Reach Machinery in Hefei, Anhui. You can see the RQ25 in action, discuss custom modifications, and meet our engineering team. Our showroom and factory are conveniently located near the Hefei Luogang Central Business District. We can assist with airport pickup, accommodation, and translation services – simply let us know your schedule.
Factory & Office Address:
No.150, Baogong Ave & Dazhong Rd, Longgang Comprehensive Economic Development Zone, Yaohai District, Hefei, Anhui, China
(Approx. 250m east of Poly·Rolan Spring)
Our online response time is within 8 hours (Monday–Friday). For urgent inquiries on weekends, please send a WhatsApp message. We look forward to building a long-term partnership with you.
Rich Reach Machinery – “Efficiency First. Quality Assured.”
