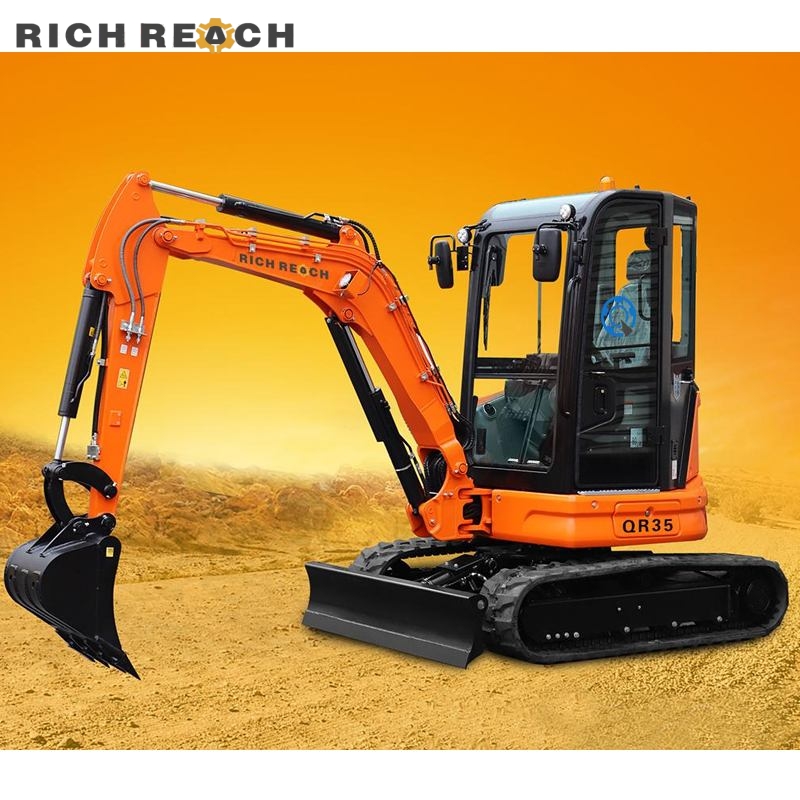

Rich Reach RQ35: 3.85T excavator, Kubota 18.2kW, 0.11m³ bucket. Zero tail swing, side-shift boom, TOPS/FOPS cab. For wall edges, basements, tight areas.
The Rich Reach RQ35 is a 3.85-ton (3850 kg) class mini crawler excavator engineered for maximum performance in tight environments. Powered by the reliable Kubota D1703 diesel engine (18.2 kW / 2200 rpm), this machine meets EU Stage V, US Tier 4, and China National IV emission standards – delivering both power and environmental responsibility.
With a bucket capacity of 0.11 m³ and class-leading breakout forces (30.1 kN bucket, 17.2 kN arm), the RQ35 handles digging, trenching, and landscaping with ease. Its zero tail swing design and side-shift boom allow you to work flush against walls, corners, and basements, making it the ideal partner for urban worksites and confined areas.
| Parameter | Value |
|---|---|
| Operating Weight | 3850 kg (3.85 ton) |
| Bucket Capacity | 0.11 m³ |
| Engine Model | Kubota D1703 |
| Engine Power | 18.2 kW @ 2200 rpm |
| Fuel Tank Capacity | 40 L |
| Hydraulic Tank Capacity | 41 L |
| Main Pump Flow | 88 L/min |
| Working Pressure | 24.5 MPa |
| Max. Digging Reach | 5553 mm |
| Max. Digging Depth | 3266 mm |
| Max. Dumping Height | 3492 mm |
| Tail Swing Radius | 850 mm (zero tail) |
| Travel Speed (Low/High) | 2.3 / 4.0 km/h |
| Swing Speed | 10 rpm |
| Bucket Digging Force | 30.1 kN |
| Arm Digging Force | 17.2 kN |
| Transport Dimensions (L×W×H) | 4914 × 1700 × 2494 mm |
* All specifications based on standard configuration. Rich Reach reserves the right to improve without notice.
At Rich Reach, we don’t just deliver excavators – we deliver long‑term partnership. Every RQ35 comes with the following service guarantees:
Our sales and after‑sales team are accessible 6 days a week (Monday–Saturday, 8:30–18:00 Beijing time).
Unlike conventional compact excavators, the RQ35 features a true zero tail swing design (850mm rear overhang) and a hydraulic side‑shift boom. This allows you to dig parallel to walls, foundations, and road curbs without repositioning the machine – essential for urban infrastructure and basement projects.
Yes. The engine meets China National IV, EU Stage V, and US EPA Tier 4 final standards. It uses low‑sulfur fuel and a reliable aftertreatment system (DOC+DPF) – no DEF required for this power range.
Absolutely. The machine comes factory‑equipped with auxiliary hydraulic lines (1‑way/2‑way selectable). Coupling with a hydraulic breaker (sized for 3‑4 ton carriers), a mechanical or hydraulic quick coupler, and a digging auger is straightforward. Our sales team can recommend compatible attachments.
Standard service intervals: engine oil & filter every 250 hours, hydraulic oil every 1000 hours, fuel filter every 500 hours, and air filter cleaning as needed. A daily greasing schedule (6 points) is recommended for the swing bearing, bucket pin, and boom/arm pivots.
Yes. We export both machines and genuine spare parts worldwide. For urgent needs, we cooperate with DHL/FedEx express shipping. We also offer a “spare parts kit” recommendation list for each RQ35 to minimize downtime.
Standard stock units can be shipped within 7‑10 days after payment. For customized configurations (e.g., steel tracks, extra counterweight, or additional auxiliary lines), please allow 20‑25 days.
We warmly invite you to inspect the Rich Reach RQ35 in person. Our facility in Hefei, Anhui Province – a key manufacturing hub – is open for customer visits, machine trials, and hands‑on training. You will meet our engineering team and witness assembly quality up close.
Factory & Sales Office Address:
No.150, Baogong Ave & Dazhong Rd, Longgang Comprehensive Economic Development Zone, Yaohai District, Hefei, Anhui, China
(approx. 250m east of Poly·Rolan Spring)
We speak English, Chinese, and are happy to assist with travel arrangements (airport pickup, hotel booking, and factory shuttle). Whether you plan to source a single unit or build a fleet, our team looks forward to meeting you in Hefei.
★ Request a virtual factory tour or live demo via video call – just drop us an email or WhatsApp message.
