Rich Reach RQ65 crawler excavator: 5.85T weight, 35.9kW Yanmar engine (China IV), load-sensing hydraulics, 0.23-0.25m³ bucket. Ideal for municipal works, landscaping & small earthmoving.

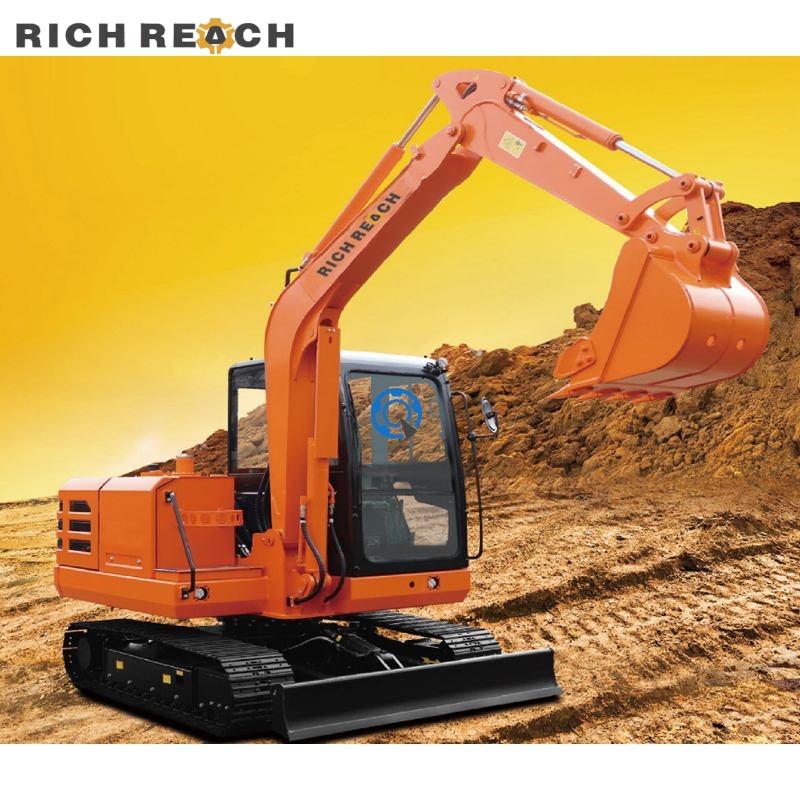

The Rich Reach RQ65 is a 5.85-ton (5,850 kg) mini crawler excavator engineered for superior performance in compact sites. Powered by a Yanmar 4TNV94 engine delivering 35.9 kW at 2,000 rpm, this machine meets China IV emission standards while keeping noise levels low. With a bucket capacity range of 0.23–0.25 m³, the RQ65 balances power, precision, and fuel efficiency — ideal for small-scale earthmoving, municipal refurbishment, and landscaping projects.
The Yanmar 4TNV94 engine provides reliable torque output and excellent fuel economy. Its advanced combustion system reduces exhaust pollutants while maintaining high thermal efficiency. Combined with a large-capacity fuel tank (130 L), the RQ65 ensures long working cycles without frequent refueling.
Equipped with a precise load-sensing hydraulic system, the RQ65 automatically adjusts flow and pressure according to real-time loads. The main pump delivers up to 151 L/min at 24.5 MPa, ensuring rapid response and smooth multi-function coordination. The large-diameter main valve and optimized spool design minimize internal pressure loss, resulting in less impact, finer control, and up to 15% higher work efficiency compared to conventional systems.
The reinforced framework cab with pillar-type ROPS/FOPS protection offers outstanding rigidity. Inside, a standard suspension seat, emergency hammer, fire extinguisher, and an ergonomic multifunctional control panel reduce operator fatigue and enhance safety. Large glass areas provide all-around visibility for precision digging and loading.
High-strength wear-resistant steel is used for the bucket, and the optimised profile reduces digging resistance. The RQ65 is compatible with various attachments including hydraulic breakers, narrow buckets, and quick couplers. The robust undercarriage features a 1,900 mm track wheelbase and 1,600 mm track gauge, providing stability on uneven ground. Maximum travel speed reaches 4.2 km/h (high) and 2.5 km/h (low) with a swing speed of 10.5 rpm.
Below are the main parameters of the Rich Reach RQ65:
| Operating Weight | 5,850 kg | Bucket Capacity | 0.23 – 0.25 m³ |
| Engine Model | Yanmar 4TNV94 | Rated Power | 35.9 kW / 2,000 rpm |
| Fuel Tank | 130 L | Hydraulic Tank | 80 L |
| Main Pump Flow | 151 L/min | Working Pressure | 24.5 MPa |
| Max. Digging Radius | 5,946 mm | Max. Digging Depth | 3,812 mm |
| Max. Dumping Height | 4,185 mm | Max. Digging Height | 5,980 mm |
| Swing Speed | 10.5 rpm | Tail Swing Radius | 1,700 mm |
| Travel Speed (High/Low) | 4.2 / 2.5 km/h | Bucket Digging Force | 40 kN |
| Arm Digging Force | 28 kN | Transport Dimensions (L×W×H) | 5,827 × 2,000 × 2,632 mm |
The RQ65's compact transport dimensions (5,827×2,000×2,632 mm) allow easy trailer transport and access to job sites with limited space, making it a versatile partner for contractors and rental fleets.
The Rich Reach RQ65 is a 5.85-ton (5,850 kg) mini crawler excavator engineered for superior performance in compact sites. Powered by a Yanmar 4TNV94 engine delivering 35.9 kW at 2,000 rpm, this machine meets China IV emission standards while keeping noise levels low. With a bucket capacity range of 0.23–0.25 m³, the RQ65 balances power, precision, and fuel efficiency — ideal for small-scale earthmoving, municipal refurbishment, and landscaping projects.
The Yanmar 4TNV94 engine provides reliable torque output and excellent fuel economy. Its advanced combustion system reduces exhaust pollutants while maintaining high thermal efficiency. Combined with a large-capacity fuel tank (130 L), the RQ65 ensures long working cycles without frequent refueling.
Equipped with a precise load-sensing hydraulic system, the RQ65 automatically adjusts flow and pressure according to real-time loads. The main pump delivers up to 151 L/min at 24.5 MPa, ensuring rapid response and smooth multi-function coordination. The large-diameter main valve and optimized spool design minimize internal pressure loss, resulting in less impact, finer control, and up to 15% higher work efficiency compared to conventional systems.
The reinforced framework cab with pillar-type ROPS/FOPS protection offers outstanding rigidity. Inside, a standard suspension seat, emergency hammer, fire extinguisher, and an ergonomic multifunctional control panel reduce operator fatigue and enhance safety. Large glass areas provide all-around visibility for precision digging and loading.
High-strength wear-resistant steel is used for the bucket, and the optimised profile reduces digging resistance. The RQ65 is compatible with various attachments including hydraulic breakers, narrow buckets, and quick couplers. The robust undercarriage features a 1,900 mm track wheelbase and 1,600 mm track gauge, providing stability on uneven ground. Maximum travel speed reaches 4.2 km/h (high) and 2.5 km/h (low) with a swing speed of 10.5 rpm.
Below are the main parameters of the Rich Reach RQ65:
| Operating Weight | 5,850 kg | Bucket Capacity | 0.23 – 0.25 m³ |
| Engine Model | Yanmar 4TNV94 | Rated Power | 35.9 kW / 2,000 rpm |
| Fuel Tank | 130 L | Hydraulic Tank | 80 L |
| Main Pump Flow | 151 L/min | Working Pressure | 24.5 MPa |
| Max. Digging Radius | 5,946 mm | Max. Digging Depth | 3,812 mm |
| Max. Dumping Height | 4,185 mm | Max. Digging Height | 5,980 mm |
| Swing Speed | 10.5 rpm | Tail Swing Radius | 1,700 mm |
| Travel Speed (High/Low) | 4.2 / 2.5 km/h | Bucket Digging Force | 40 kN |
| Arm Digging Force | 28 kN | Transport Dimensions (L×W×H) | 5,827 × 2,000 × 2,632 mm |
The RQ65's compact transport dimensions (5,827×2,000×2,632 mm) allow easy trailer transport and access to job sites with limited space, making it a versatile partner for contractors and rental fleets.
Rich Reach stands behind every machine with comprehensive support to keep your operations running smoothly. When you choose the RQ65, you receive the following commitments:
All major components including engine, hydraulic system, and undercarriage are covered by a 12-month or 2,000-hour warranty (whichever comes first). Extended warranty options are available upon request.
We maintain a dedicated parts warehouse in Hefei and cooperate with regional distributors to ensure fast delivery of original Yanmar filters, hydraulic parts, wear parts, and structural components.
Our multilingual technical team provides prompt remote diagnostics via video call or messaging. For critical issues, we can arrange on-site service through our local service network (available in most Chinese provinces and select global markets).
We provide free operation and daily maintenance training at our facility. Digital manuals, troubleshooting guides, and video tutorials are also available for every customer.
Our sales and support representatives are just a message away. Contact us any time for urgent parts request or technical inquiry.
The Rich Reach RQ65 is equipped with a Stage V / China IV compliant Yanmar engine, offering low emissions and high fuel efficiency. It is suitable for regions with strict environmental regulations.
Yes. The machine comes standard with auxiliary hydraulic piping and a proportional control circuit for breakers, augers, or shears. We can also provide a recommended breaker sizing chart for optimal performance.
The rear tail swing radius is 1,700 mm, making the RQ65 a compact radius excavator. It allows safe operation near walls and obstacles, perfect for confined urban job sites.
Regular maintenance intervals: engine oil & filter every 250 hours, hydraulic oil filter every 500 hours, and full hydraulic oil change every 1,000 hours. The three-door rear cover provides easy access to all service points.
Absolutely. We ship genuine parts worldwide via air or sea freight. For urgent needs, our team can coordinate expedited shipping. Please contact sales-01@richreach.cn or Amy for a quote.
For qualified buyers, we offer flexible payment terms and lease options. Speak to our sales representatives to learn more about current promotions.
Yes! We warmly welcome customers to our Hefei, Anhui facility for machine testing, factory inspection, and training. Please see the contact details below to schedule a visit.
