Rich Reach RQ75 7.7t crawler excavator with 46.2kW Yanmar engine, 0.28–0.32m³ bucket, load-sensing hydraulics, ideal for municipal, housing & farm projects.

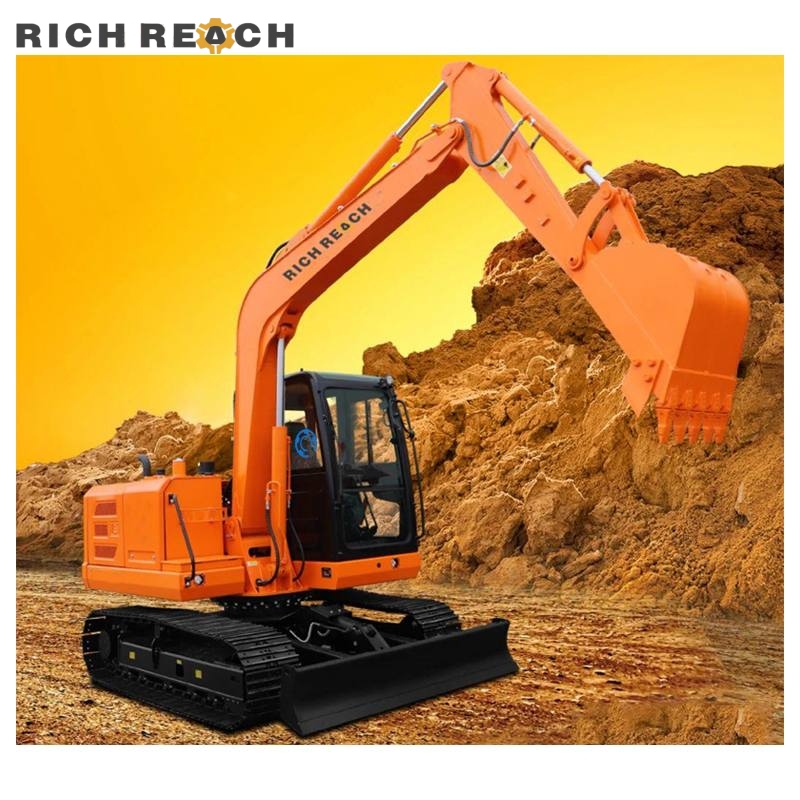

The Rich Reach RQ75 crawler excavator is a powerful and compact machine engineered for small to medium-sized earthmoving projects. With an operating weight of 7,680 kg and a bucket capacity range of 0.28–0.32 m³, the RQ75 delivers superior digging force, fuel efficiency, and operational comfort. Powered by a Yanmar 4TNV98C engine (46.2 kW @ 2200 rpm) meeting China Stage IV emission standards, it features DOC+DPF+EGR aftertreatment technology — no urea required. Whether you work in urban renovation, municipal construction, housing foundations, or farmland irrigation, the RQ75 offers excellent performance and low total cost of ownership.
The RQ75 integrates a Yanmar 4TNV98C diesel engine delivering 46.2 kW of robust power with low noise levels. Advanced DOC+DPF+EGR exhaust aftertreatment ensures full compliance with strict emission regulations without the hassle of AdBlue/urea. This reduces operating costs and simplifies daily maintenance, making it ideal for long-hour operations in residential or sensitive areas.
Equipped with a load-sensing hydraulic system and high-displacement main pump & large-bore main valve, the RQ75 provides fast response times, precise controllability, and outstanding fuel efficiency. The optimized valve core structure reduces pressure loss, delivering smooth, low-impact digging actions and superior grading performance. Max hydraulic flow reaches 156 L/min, working pressure up to 28 MPa, ensuring excellent multifunction coordination and cycle times.
The RQ75 features a reinforced frame-type cabin with increased rigidity and post-style protective design. Standard equipment includes a suspension seat, emergency hammer, fire extinguisher, and upgraded multi-function control panel for fatigue-free operation. The spacious interior and excellent all-around visibility boost operator confidence in tight job sites.
Adaptable to diverse applications, the RQ75 supports quick-change attachments including hydraulic breakers, narrow buckets, rippers, and tilt rotators. The reinforced high-wear-resistant steel bucket features an optimized shape to reduce digging resistance, improving productivity while lowering fuel burn.
Daily checks and servicing are effortless thanks to the three-door rear cover design offering spacious access to engine, filters, and cooling components. Routine maintenance points are grouped conveniently, reducing downtime and maximizing machine availability.
| Operating weight | 7680 kg | Bucket capacity | 0.28 – 0.32 m³ |
| Engine model | Yanmar 4TNV98C | Engine power | 46.2 kW / 2200 rpm |
| Fuel tank capacity | 132 L | Hydraulic tank capacity | 120 L |
| Main pump max flow | 156 L/min | Working pressure | 28 MPa |
| Max digging radius | 6290 mm | Max digging depth | 4070 mm |
| Max digging height | 7050 mm | Max unloading height | 5070 mm |
| Ground max digging radius | 6090 mm | Bucket digging force (ISO) | 56 kN |
| Arm digging force | 38 kN | Travel speed (high/low) | 4.8 / 2.8 km/h |
| Swing speed | 11.5 r/min | Tail swing radius | 1930 mm |
| Track gauge | 1750 mm | Track wheelbase | 2130 mm |
| Transport dimensions (L×W×H) | 6310 × 2250 × 2780 mm | ||
Rich Reach Machinery provides a complete ownership experience with comprehensive after-sales service, ensuring your RQ75 excavator operates at peak performance for years. Our service guarantees include:
Our multilingual sales and support team (English, French, Arabic, Spanish) is ready to assist you with pre-sales consultation, logistics, and after-sales care.
The Rich Reach RQ75 has an operating weight of 7,680 kg (including standard bucket and operator fluids).
No. The RQ75 adopts DOC+DPF+EGR emission control technology and does not require any urea injection, which reduces operating costs and simplifies maintenance.
The machine supports hydraulic breakers, narrow trenching buckets, rippers, augers, and tilt buckets. All attachments can be equipped with quick couplers for fast changeover.
Maximum digging depth is 4,070 mm, and maximum digging height reaches 7,050 mm, making it suitable for basement excavation, roadside drainage, and pipe laying.
We offer a manufacturer warranty of 12 months or 2,000 hours. Replacement parts can be shipped globally, and our engineers provide remote support. Extended warranty options are also available.
Yes, we provide operation and maintenance manuals in English, and optional on-site operator training can be arranged for large orders or upon request.
Shipping time depends on destination. Typically from Hefei port (Shanghai or Ningbo) to major ports in Southeast Asia, Middle East, Africa, or South America takes 25–45 days. We also support container loading or bulk vessel transport.
Absolutely. With a tail swing radius of only 1,930 mm and compact transport dimensions, the RQ75 works efficiently in confined spaces like residential alleys, indoor demolition, and municipal trenches.
Yes, we cooperate with trade credit and leasing partners for qualified clients. Please contact our sales team for detailed financing solutions.
We warmly welcome international customers to visit Rich Reach Machinery in Hefei, Anhui Province, China. Tour our assembly lines, witness real-machine demonstrations of the RQ75, and discuss customized solutions with our engineers. Our team offers free airport pickup (Hefei Xinqiao International Airport or Shanghai/ Nanjing), and can assist with hotel reservations and interpreter services.
Experience the quality and performance of Chinese excavator manufacturing firsthand.
For any inquiry about RQ75 price, customized painting, or spare parts, please reach out via email or WhatsApp — we typically reply within 6 business hours.
Let Rich Reach RQ75 be your reliable partner in profitability and project success. We look forward to welcoming you to China.
